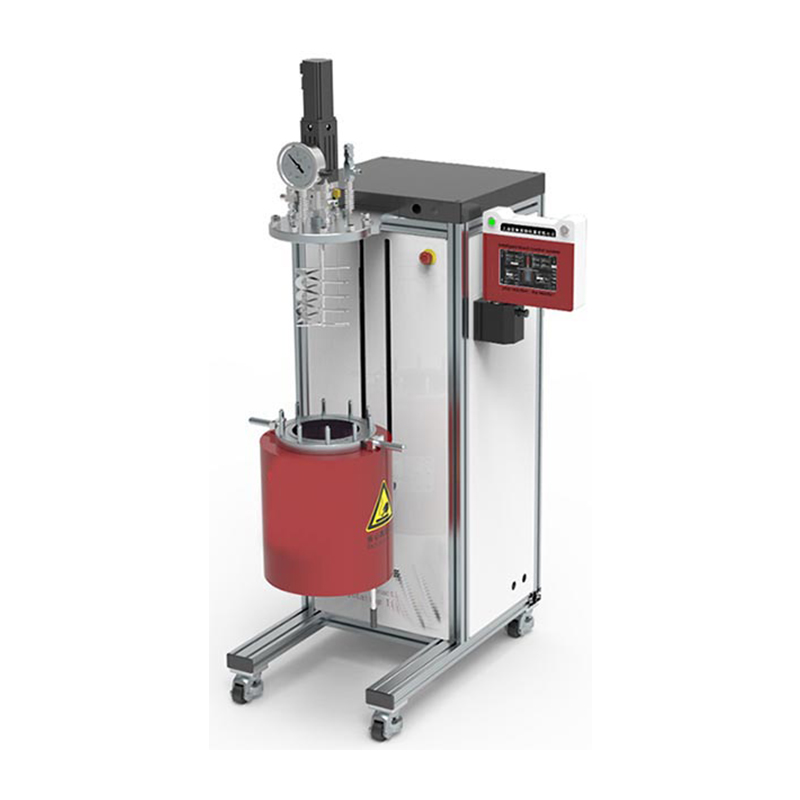

The automatic lifting reactor adopts frame design, which is easy to operate, intelligent control and can expand a variety of functions. It is widely used in petroleum, chemical industry, pharmacy, materials, metallurgy and other fields. Such as catalytic reaction, polymerization, supercritical reaction, high temperature and high pressure synthesis, hydrogenation, etc.
Product Features
1, The kettle cover is fixed, and the external pipeline of the kettle cover does not need to be disassembled every time, so as to avoid the tedious disassembly and assembly.
2, The framework can be combined freely, with enough space to expand other functional modules.
3, PLC + touch screen or computer control. Control logic and control points can be customized and developed.
Main Technical Features
1, Integral frame design, ready for use
2, fixed kettle head, Lifting and lowering of the kettle body, easy to operate
3, Can be upgraded to the kettle body flip, convenient discharging
4, Expandable Isobaric feeding, condense other modules
5, Electric heating jacket cycle temperature control can be chosen
6, Expandable automatic feeding and metering module
7, Touch screen control, collect and record various data
8, The temperature, pressure, material, function can be customized on demand
Case Picture
Volume: 1L
Structure: three-layer jacket structure, oil bath heating, and the outer layer is thermal insulation layer,
Temperature: - 20~ 200 ℃
Pressure:10Mpa
Volume: 2L
Structure: the kettle body is fully transparent and visible,
Temperature:RT-150℃
Pressure:1.5Mpa
Supporting functions: 1. Isobaric feeding, 2. Vacuum distillation
